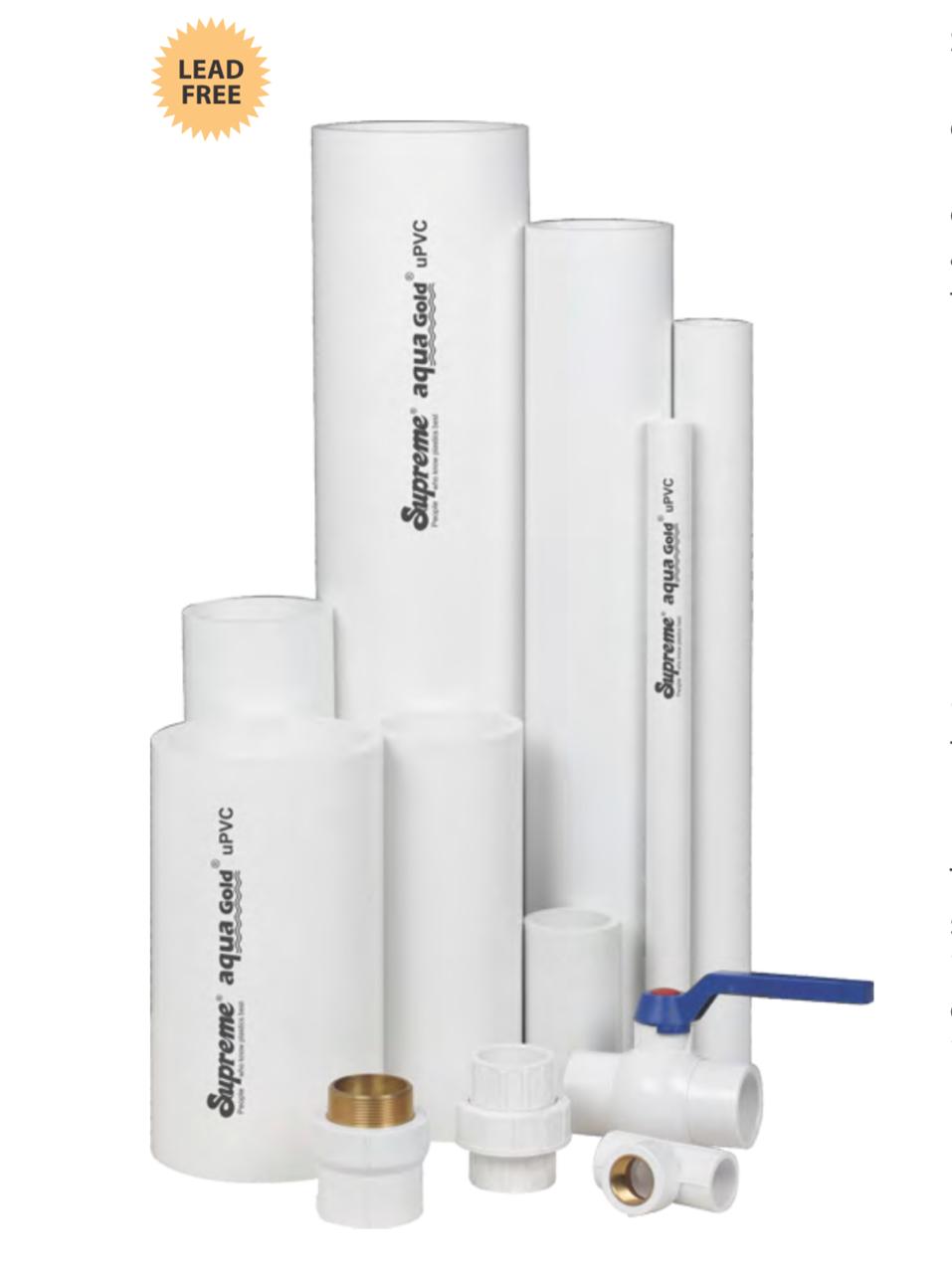

AQUA GOLD-uPVC High Pressure Plumbing System

Supreme “lead free” aqua Gold high pressure uPVC solvent weld

plumbing system is an economical solution for transportation and

distribution of potable water and many other applications. This

hygienic and cost effective system is not only technically superior to

conventional GI piping systems but offers many additional

advantages over them. This system is very easy to install and

functionally the most suitable for variety of plumbing applications.

It has much longer life span besides being cost effective

Product range

Pipes - 15 to 250mm (½“ to 10”) sizes in SCH 40 and SCH 80

pressure class as per ASTM D-1785

Fittings - 15 to 200mm (½“ to 8”) sizes in SCH 80 as per ASTM D-2467

and 15 to 50mm ( ½“ to 2”) sizes in SCH 40 as per ASTM D2466.

2

(Pressure rating varies from 41.4 to 9.8 kgf/cm for SCH 40 and 58.6

2

to 16.1 kgf/cm for SCH 80 based on pipe size

Fields of application

This system is designed for normal water application and is an ideal

solution for potable water distribution, plumbing and water supply

in residential and industrial buildings. It can be used for uptake lines,

down take lines and loops on the terrace, water distribution mains,

industrial process lines, sugar, paper, distillery industry, concealed

FEATURES AND BENEFITS

Strong, resilient and long lasting - This system is highly

resilient, tough and durable with high tensile and impact

strength. It is also free from weaknesses caused due to rusting,

weathering and chemical actions which helps it last

considerably longer than GI pipe system.

Mechanical properties - uPVC pipes are relatively more

flexible than conventional pipe system. They have adequate

tensile strength and even burst strength to withstand the

operating pressures encountered in most service conditions

within the specified range of temperature for the system.

External shocks or impacts that could cause a failure in more

rigid materials, can be absorbed by the system.

Excellent chemical and corrosion resistant properties - This

material is free from corrosion and has an excellent resistance

against many chemicals like strong mineral acids, alkalis, salts

as well as to a large number of organic solvents.

th Light weight - Being light in weight (1/6 the weight of metal

piping), these pipes are easy to handle, transport and install.

Simple and leak proof joints - Jointing can be done speedily

with the special solvent cement supplied by the company

which ensures 100% leak proof joints.

Most suitable for carrying potable water - Being nonmetallic and made from special compounds, this system is free

from corrosion, chemical reactivity and biological effects and

hence most suitable for potable water transportation.

Optimum flow rates - A mirror-smooth surface with C-value

150 ensures high flow rate and low frictional losses.

Piping system integrity - Supreme aqua Gold offers a

complete range of pipe and fitting products which helps to

maintain the integrity of the system.

Maintenance free - Being free from all the demerits of old

systems like rusting, pitting, scaling, galvanic or electrolytic

corrosion, the Supreme aqua Gold system can rightly boast of

being maintenance free.

Overall economy - Maintenance free, long life of a product

which is light, can be cut, jointed and installed with little effort

saves a huge amount of money over its life time.

pipe work and transportation of corrosive fluids.
